11kv 45kN Polymer Disc Insulator B&S Type
Product Specifications
| Material | Polymer |
|---|---|
| Capacity | 12kV |
| End Fitting Type | Ball and Socket Type |
| Rated Voltage | 11kV |
| Voltage | 11kV |
| Color | Grey |
| I Deal In | New Only |
| Size | 11kV |
| Mechanical Strength | 45kN |
| Minimum Creepage Distance | 320mm |
| Product Type | Composite Polymer Disc insulator |
| Weight | 800 gm |
| Creep Age Distance | 320mm |
| Packaging Type | Corrugated Box |
| Usage/Application | Over head distribution and transmission systems |
| Type | Ball and Socket type |
| Working Voltage | 11kV |
| Country of Origin | Made in India |
| Minimum order quantity | 2000 Piece |
Product Description

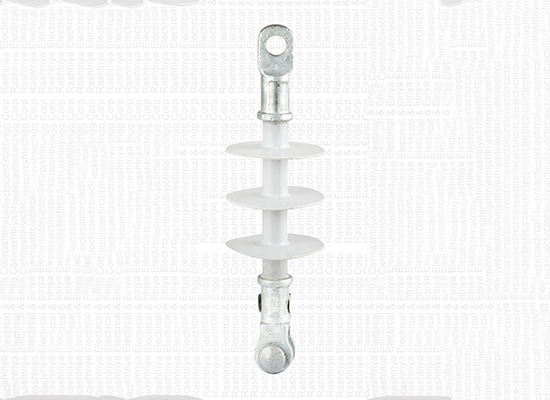

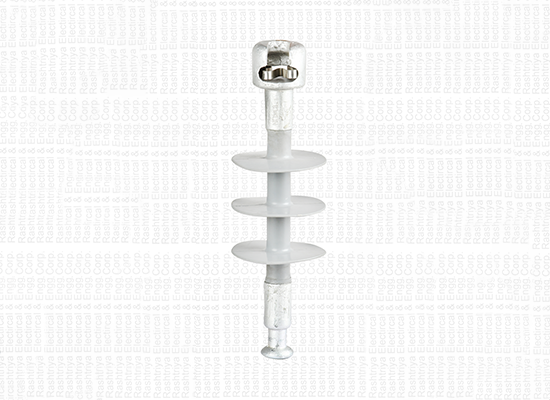

11kV Composite Polymer Disc insulator B&S type, also called Silicone Rubber Suspension insulator or Composite Polymeric Tension insulators having ball and socket type end fitting or Long Rod insulator. Our high voltage electrical insulator conforms to IEC:61109 (latest amendemend).
Suitable for application on 11kV or 12kV overhead power/ electrical/ energy/ high voltage distribution/ transmission lines or systems and substations. Withstanding Tensile load of 45kN.
Make: Rashtriya Electrical
We are manufacturers based in India. We supply all across India, Nepal, Bhutan, Myanmar, Bangladesh, Sri Lanka, Middle Eastern Countries and Africa.
